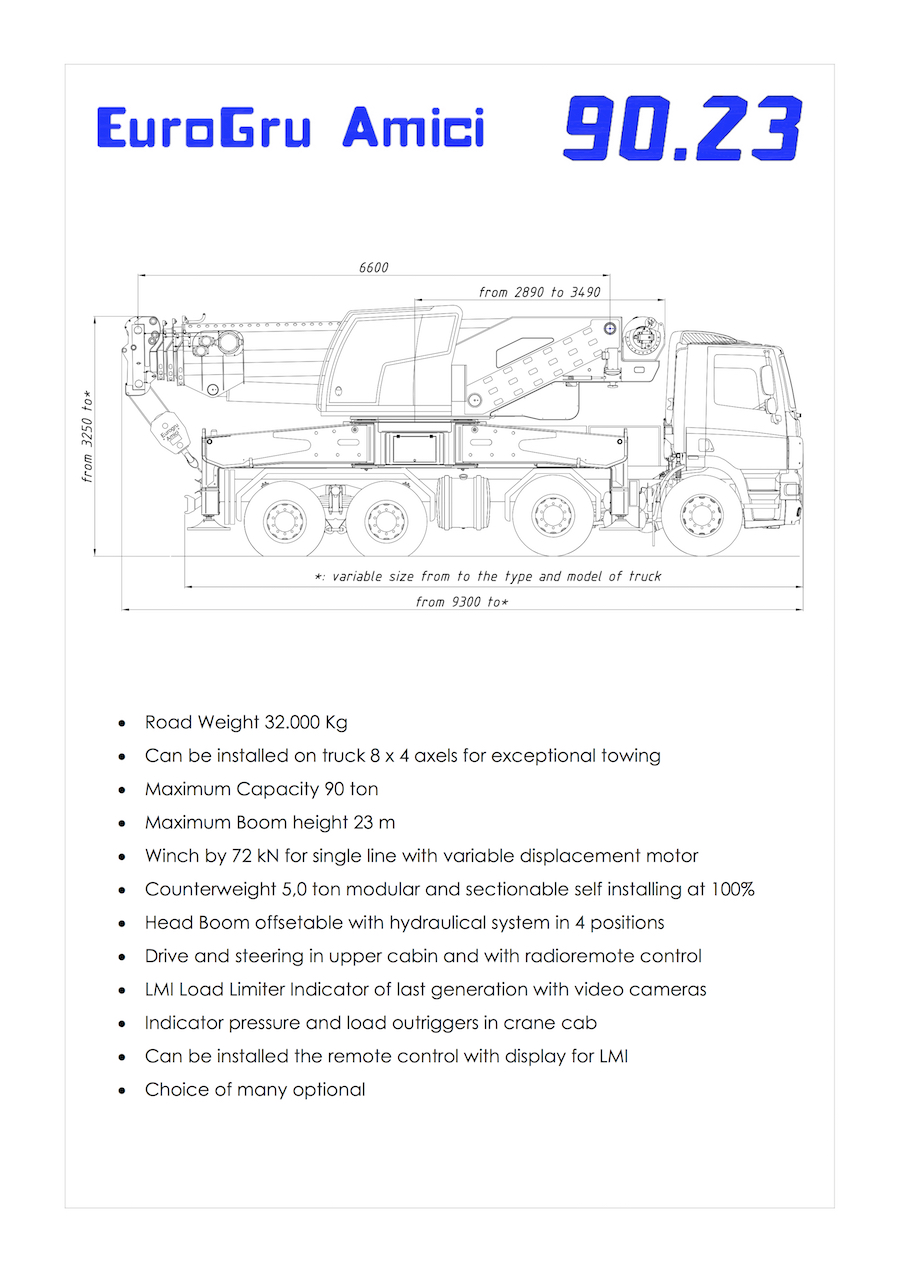

AUTOGRU 90.23

  • Road Weight 32.000 Kg
  • Can be installed on truck 8 x 4 axels for exceptional towing
  • Maximum Capacity 90 ton
  • Maximum Boom height 23 m
  • Winch by 72 kN for single line with variable displacement motor
  • Counterweight 5,0 ton modular and sectionable self installing at 100%
  • Head Boom offsetable with hydraulical system in 4 positions
  • Drive and steering in upper cabin and with radioremote control
  • LMI Load Limiter Indicator of last generation with video cameras
  • Indicator pressure and load outriggers in crane cab
  • Can be installed the remote control with display for LMI
  • Choice of many optional
Autogru 90.23
Autogru 90.23

DETTAGLI

Modello
90.23
Portata MAX
90.000 kg
Lunghezza braccio
6,60 - 23,00 meters
